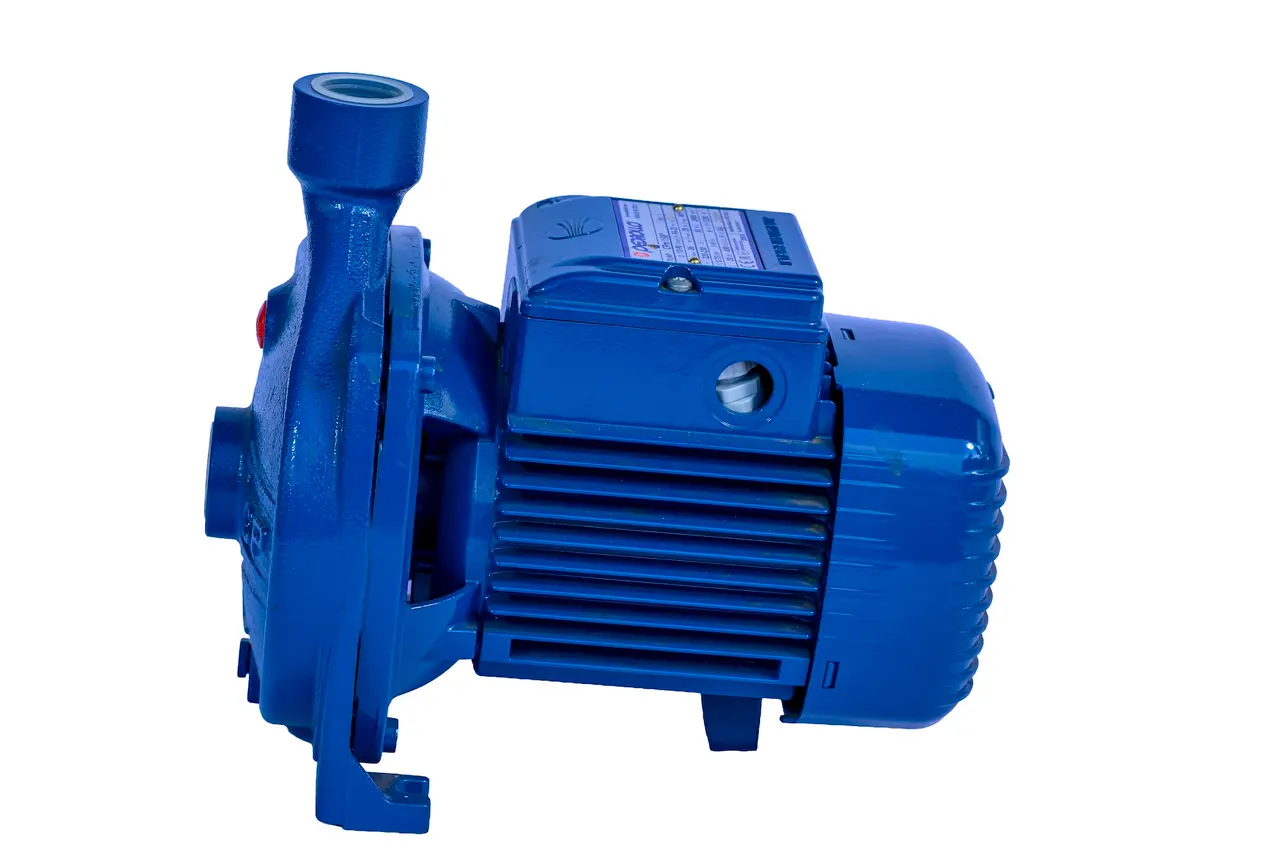

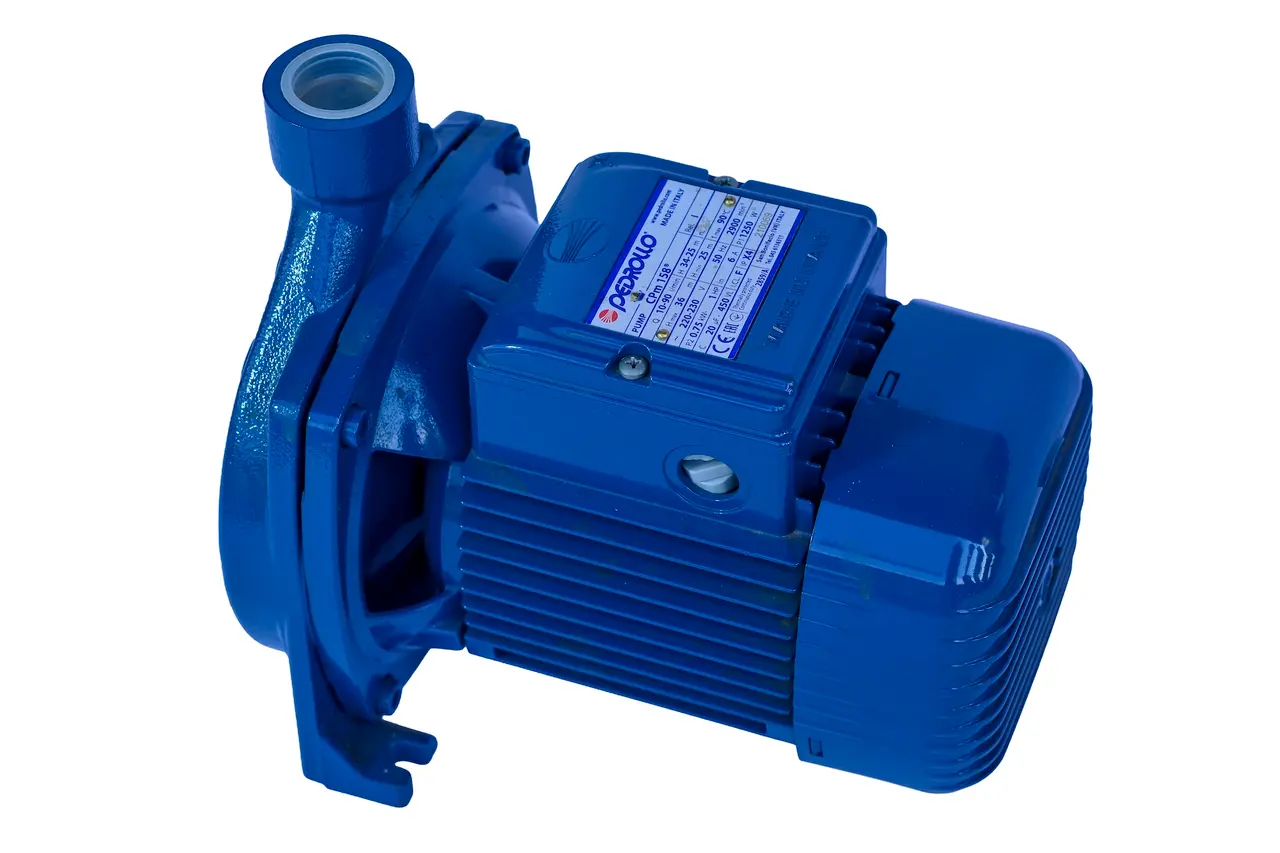

Pedrollo CPm 158 Centrifugal Surface Water Pump - 1HP, Single Phase
Pedrollo · Model / part no. PEDROLLO-CPM-158
-10%New
Price (incl. VAT)
UGX 650,000UGX 720,000-10%Cash / Mobile Money / Bank
You save UGX 70,000
Bulk & corporate pricing available, ask for a discount.
About this item
Genuine Italian-made 1HP centrifugal pump. Delivers up to 90 liters/min flow and 34m maximum head, perfect for domestic water supply, tank filling, and pressure boosting in Uganda.
- The Pedrollo CPm 158 is a world-renowned centrifugal surface pump, recognized as the gold standard for domestic and light civil water applications. Manufactured entirely in Italy, it is built with a heavy-duty cast iron body and a durable brass impeller, ensuring long lifespan and rust resistance even under continuous operation.
- Powered by a highly efficient 1 HP (0.75 kW) single-phase motor, this pump is designed to push clean water and chemically non-aggressive liquids with reliable pressure. It delivers an impressive maximum head of 34 meters and a flow rate of up to 90 liters per minute. This makes it the ideal solution for transferring water from ground level break-tanks to elevated rooftop reservoirs in multi-story homes or commercial buildings in Uganda.
- Equipped with a robust S1 continuous duty motor, IPX4 protection, and Class F insulation, the CPm 158 is designed for safe, non-stop performance. Because it is a centrifugal pump, it should be installed in an enclosed environment or protected from inclement weather, and requires a foot valve when drawing water from a well or tank below its level.
Specifications
Performance
| Motor Power | 1 HP |
| Output Power | 0.75 kW |
| Maximum Head (Hmax) | 36 m |
| Operating Head Range | 25 - 34 m |
| Maximum Flow Rate | 90 l/min |
| Minimum Flow Rate | 10 l/min |
| Manometric Suction Lift | 7 m |
Electrical
| Voltage | 220-230 V |
| Phase | Single |
| Frequency | 50 Hz |
| Rated Current (In) | 6 A |
| Motor Speed | 2900 rpm |
| Capacitor | 20 µF |
| Insulation Class | F |
| Protection Rating | IPX4 |
| Duty Cycle | Continuous Service S1 |
Hydraulics & Mechanical
| Inlet Port Size | 1 inch |
| Outlet Port Size | 1 inch |
| Pump Body | Cast Iron |
| Impeller | Brass |
| Motor Shaft | Stainless Steel EN 10088-3 - 1.4104 |
| Max Liquid Temperature | 90 °C |
| Max Ambient Temperature | 40 °C |
Warranty
| Warranty | 12 months |
Manufacturing
| Country of origin | Italy |
General
| Model number | CPm 158 |
| Condition | New |
Packaging
| In the box | Pedrollo CPm 158 Centrifugal Pump; User Manual and Warranty Guide |
